Split Fir Tree Cable Ties
Split Fir Tree Cable Ties产品列表
<--左右滑动View表格-->
| 编 号 Item NO. |

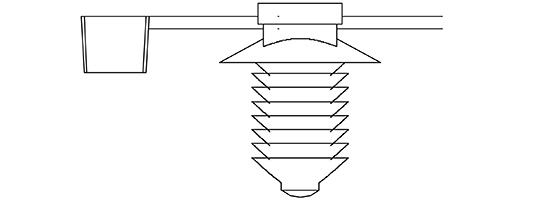

示意图 Sketch Map |
W(宽) (mm) |
L(长) (mm) |
孔径Φ HoleDla |
适用板厚 Panel Thickness |
最大捆扎范围 Max.Bundle Dia |
|---|---|---|---|---|---|---|

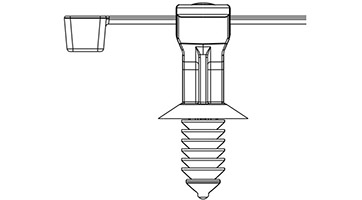

| MOC-3.6×150ΦΦ4.9-5.1 |  |
3.6 | 150 | Φ4.9-5.1 | 0.7-3.0 | 35 |
| MOC-4.8×200Φ4.5-5.0 | |
4.8 | 200 | Φ4.5-5.0 | 0.7-3.0 | 45 |
| MOC-3.6×150Φ6.4-7.1 | |
3.6 | 150 | Φ6.4-7.1 | 0.8-3.0 | 35 |
| MOC-4.8×200Φ6.4-7.1 | |
4.8 | 200 | Φ6.4-7.1 | 0.8-3.0 | 45 |

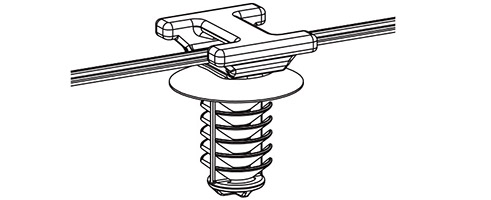

| MOC-4.6×200Φ6.5-7.0 |  |
4.6 | 200 | Φ6.5-7.0 | 0.75-6.0 | 45 |
| MOC-4.8×200Φ6.5-7.0 | |
4.8 | 200 | Φ6.5-7.0 | 0.8-7.0 | 45 |
| MOC-3.6×150Φ6.5-7.0 | |
3.6 | 150 | Φ6.5-7.0 | 0.75-5.0 | 45 |

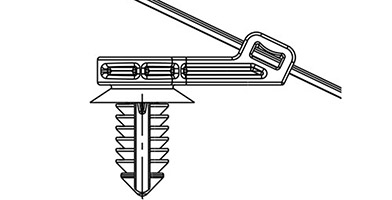

| MOC-4.8×200Φ7.7-8.0 |  |
4.8 | 200 | Φ7.7-8.0 | 0.8-6.0 | 35 |
| MOC-4.8×200Φ9.0 | |
4.8 | 200 | Φ9.0 | 0.8-9.0 | 45 |

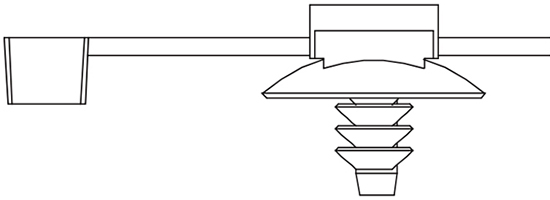

| MOC-4.8×200Φ9.0-10.6 |  |
4.8 | 200 | Φ9.0-10.6 | 5.0-11.0 | 45 |
| MOC-3.6×150Φ9.7-10.0 | |
3.6 | 150 | Φ9.7-10.0 | 0.8-5.0 | 45 |
| MOC-4.8×200Φ9.7-10.0 | |
4.8 | 200 | Φ9.7-10.0 | 0.8-5.0 | 45 |

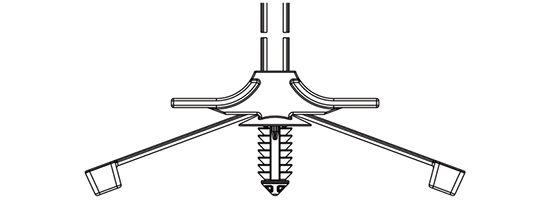

| MOC-4.6×200Φ10.8-11.2 |  |
4.6 | 200 | Φ10.8-11.2 | 1.0-10.0 | 45 |
| MOC-7.6×387Φ10.8-11.2 | |
7.6 | 387 | Φ10.8-11.2 | 1.0-10.0 | 105 |

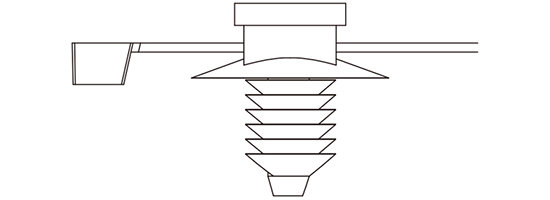

| MOC-4.7×200Φ6.1-6.9 |  |
4.7 | 200 | Φ6.1-6.9 | 0.6-6.0 | 50 |

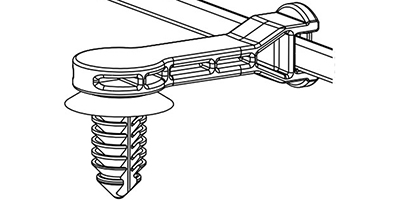

| MOC-4.6×200Φ6.1-6.9 |  |
4.6 | 200 | Φ6.1-6.9 | 0.6-6.0 | 50 |

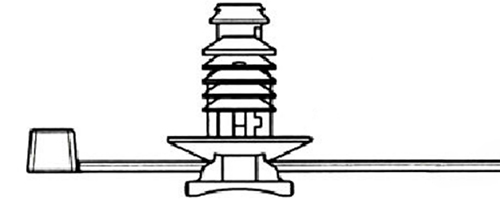

| MOC-4.8×200Φ6.1-6.9 |  |
4.8 | 200 | Φ6.1-6.9 | 0.6-8.25 | 45 |
| MOC-3.6×200Φ6.5-7.0 |  |
3.6 | 200 | Φ6.5-7.0 | 0.8-5.0 | 45 |
